We take immense pleasure to introduce ourselves as a manufacturer of pipe fittings of Stainless Steel, Carbon steel, Alloy Steel and High Nickel Alloys. The offered range of butt welded pipe fittings is known for its corrosion resistance, durability and high tensile strength. Butt weld is to connect pipes and fittings ends by butt welding process. Also known by welded pipe fittings. It has ends in beveled or plain, dimensions normally from 3/4'' to 24''. Manufactured according to ASME B16.9. Clients can avail these products as per their dimensional specifications. The products offered by us are available at market leading prices for our customers

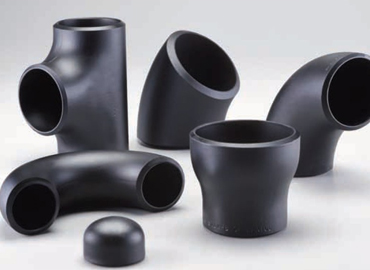

Pipe fittings are available as Elbow, Long Radius Elbow, Short Radius Elbow, 90 Deg Elbow, 45 Deg Elbow, 180 Deg Elbows, 1D Elbow, 3D Elbow, 5D Elbow, Tee, Equal Tee, Unequal/Reducing Tee, Reducer, Concentric and Eccentric Reducer, End Cap / Pipe Cap, Stubend, Long & Short Stubend, Swage Nipple, Barrel Nipple, Reducing Nipple, Bend, Long Radius Bends, Piggable Bend, Equal & Unequal Cross and out lets (olets). These fittings are the most common type of welded pipe fitting and are specified by nominal pipe size and pipe schedule. Buttweld fittings use seamless or welded pipe as the starting material and are formed (through multiple processes) to get the shape of elbows, tees and reducers etc.

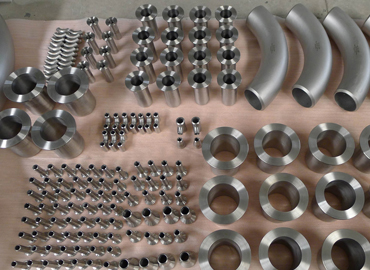

Standard : ASTM A403/ ASME SA403
Grades : 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Type : Seamless / Welded / Fabricated
Range : 1/2″ NB TO 48″ NB
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Destructive testing includes:
Non-destructive testing includes:
Grade AISI | Chemical Composition - Percent | ||||||||
---|---|---|---|---|---|---|---|---|---|
C Max | Mn Max | P Max | S Max | Si Max | Cr | Ni | Mo | Other Element |
|
J7 | 0.1 | 8.50-10.00 | 0.09 | 0.03 | 0.75 | 15.00-16.00 | 0.25-0.50 | - | - |
J4 | 0.1 | 8.50-10.00 | 0.09 | 0.03 | 0.75 | 15.00-16.00 | 0.80-1.20 | - | - |
201 | 0.15 | 5.50-7.50 | 0.06 | 0.03 | 1 | 16.00-18.00 | 3.50-5.50 | - | N 0.25 |
202 | 0.15 | 7.50-10.00 | 0.06 | 0.03 | 1 | 17.00-19.00 | 4.00-6.00 | - | N 0.25 |
301 | 0.15 | 2 | 0.045 | 0.03 | 1 | 16.00-18.00 | 6.00-8.00 | - | - |
302 | 0.15 | 2 | 0.045 | 0.03 | 1 | 17.00-19.00 | 8.00-10.00 | - | - |
304 | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 18.00-20.00 | 8.00-11.00 | - | - |
304L | 0.035 | 2 | 0.045 | 0.03 | 0.75 | 18.00-20.00 | 8.00-13.00 | - | - |
304H | 0.04-0.10 | 2 | 0.045 | 0.03 | 0.75 | 18.00-20.00 | 8.00-11.00 | - | - |
305 | 0.12 | 2 | 0.045 | 0.03 | 0.75 | 17.00-19.00 | 10.50-13.00 | - | - |
308 | 0.08 | 2 | 0.045 | 0.03 | 1 | 19.00-21.00 | 10.00-12.00 | - | - |
309 | 0.2 | 2 | 0.045 | 0.03 | 1 | 22.00-24.00 | 12.00-15.00 | - | - |
309S | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 22.00-24.00 | 12.00-15.00 | - | - |
310 | 0.25 | 2 | 0.045 | 0.03 | 1.5 | 24.00-26.00 | 19.00-22.00 | - | - |
310S | 0.08 | 2 | 0.045 | 0.03 | 1.5 | 24.00-26.00 | 19.00-22.00 | - | - |
316 | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 11.00-14.00 | 2.00-3.00 | - |
316L | 0.035 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 10.00-15.00 | 2.00-3.00 | - |
316H | 0.04-0.10 | 2 | 0.045 | 0.03 | 0.75 | 16.00-18.00 | 11.00-14.00 | 2.00-3.00 | - |
316TI | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.00-18.00 | 10.00-14.00 | 2.00-2.50 | Ti5*C.min |
317 | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 18.00-20.00 | 11.00-14.00 | 3.00-4.00 | - |
317L | 0.035 | 2 | 0.045 | 0.03 | 0.75 | 18.00-20.00 | 11.00-15.00 | 3.00-4.00 | - |
321 | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 17.00-19.00 | 9.00-13.00 | - | Ti5xC% |
321H | 0.04-0.10 | 2 | 0.045 | 0.03 | 0.75 | 17.00-19.00 | 9.00-13.00 | - | Ti5xC% |
347 | 0.08 | 2 | 0.045 | 0.03 | 0.75 | 17.00-19.00 | 9.00-13.00 | - | Na+Ta10xC% |
347H | 0.04-0.10 | 2 | 0.045 | 0.03 | 0.75 | 17.00-19.00 | 9.00-13.00 | - | Na+Ta10xC% |
409L | 0.03 | 1 | 0.04 | 0.02 | 1 | 10.50-11.70 | 0.05 | - | Ti6x(C=N) Min |
410 | 0.15 | 1 | 0.04 | 0.03 | 1 | 11.50-13.50 | 0.75 | - | - |
410S | 0.08 | 1 | 0.04 | 0.03 | 1 | 11.50-13.50 | 0.6 | - | - |
420 | 0.15Min | 1 | 0.045 | 0.03 | 1 | 10.50-15.50 | 1.0-2.5 | - | Mo 0.20-1.20 |
429 | 0.12 | 1 | 0.04 | 0.03 | 1 | 14.00-16.00 | * | - | - |
430 | 0.12 | 1 | 0.04 | 0.03 | 1 | 16.00-18.00 | 0.75 | - | - |
430Ti | 0.12 | 1.25 | 0.06 | 0.15 | 1 | 16.00-18.00 | - | - | Ti 0.75 |
439 | 0.03 | 1 | 0.04 | 0.03 | 1 | 17.00-19.00 | 0.5 | - | Ti [0.20+4(C+N)] Min, 1.10 max ALO.15 |
441 | 0.03 | 1 | 0.04 | 0.03 | 1 | 17.50-19.50 | 1 | 1.75-2.50 | Ti 0.10 to 0.50 |
444 | 0.025 | 1 | 0.04 | 0.03 | 1 | 17.50-19.50 | 1 | 1.75-2.50 | (Ti+Cb) 0.20+4(C+N)] min 0.80 max |
S31803 | 0.025 | 1 | 0.04 | 0.03 | 1 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | - |
ASTM A312 Mechanical Properties | |||||
Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
º F(º C) | |||||
TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
TP304H | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
TP310S | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
TP316H | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
TP316Ti | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
TP321 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
TP321H | Solution | Cold: 2000(1100) | 75(515) | 30(205) | 35 |
Hot: 1925(1050) | |||||
TP347 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
TP347H | Solution | Cold: 2000(1100) | 75(515) | 30(205) | |
Hot: 1925(1050) |
Standard : ASTM / ASME SA815

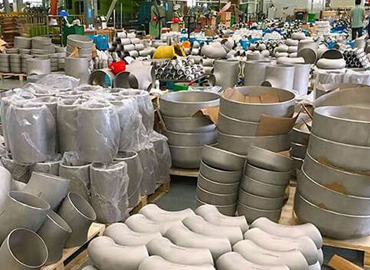

Grades : UNS S32205, UNS S31803, UNS S32750, UNS S32760
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Type : Seamless / Welded / Fabricated
Range : 1/2″ NB TO 48″ NB
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Manufactured Butt Weld Pipe Fittings go with quality assurance test under professionals some of the tests are:
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 - 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Grade | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
Duplex 2205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
Super Duplex 2507 | 7.8 | 0.281 | 1350 | 2460 |
Standard : ASTM B336 / ASME SB336

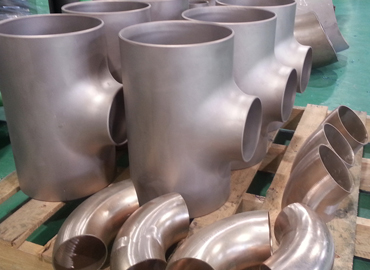

Grades : Nickel 200 / 201, Monel 400 / K500, Inconel 600, Inconel 625, Inconel 718, Incoloy 800, Incoloy 825, Hastelloy C276 / C22, / B2, Alloy 20, Titanium Gr 2/5, Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500)
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Type : Seamless / Welded / Fabricated
Range : 1/2″ NB TO 48″ NB
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Non-destructive testing includes:
Destructive testing includes:
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min | - |
Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min | - |
Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 |
Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 |
Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 |
Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 |
Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min | - |
Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min | - |
Hastelloy C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | - | 4.00 – 7.00 | 50.99 min* | 14.50 – 16.50 |
Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | - | 2.00 – 6.00 | 50.015 min* | 20.00 – 22.50 |
Hastelloy B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | - | 2.0 max | Bal | 1.0 max |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Nickel 200 / 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Incoloy 800/H/HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
Grade : ASTM A234 Grade WPB, WPC; ASTM A420 Grade WPL3, WPL6; ASTM A860 Grade WPHY 42 / WPHY 46 / WPHY 52 / WPHY 60 / WPHY 65 / WPHY 70.
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Type : Seamless / Welded / Fabricated
Range : 1/2″ NB TO 48″ NB
Thickness : Sch 5s, 10s, Sch 40s, Sch 80s,160s, Sch XXS
LtCS Pipe Fittings : A420 WPL3 / A420 WPL6
Manufactured buttweld Fittings go with quality assurance test under professionals some of the tests are:
Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Vb |
A234 WPB | 0.3 | 0.29 - 1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
A234 WPB | 0.35 max | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | - |
A420 WPL3 | ≤0.20 | 0.31-0.64 | ≤0.05 | ≤0.05 | 0.13-0.37 | - | - | 3.2-3.8 | - | - | - |
A420 WPL6 | ≤0.30 | 0.50-1.35 | ≤0.035 | ≤0.040 | 0.15-0.40 | ≤0.30 | ≤0.12 | ≤0.40 | ≤0.40 | ≤0.08 | - |
ASTM A860 | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.30 | 0.25 | 0.50 | 0.35 | 0.10 | - |
ASTM A860/ A860M | Yield Strength, min. | Tensile Strength | Elongation, min. | Cv, avg./min. | |||
Grade | ksi | MPa | ksi | MPa | % | ft*lbs | J |
WPHY 42 | 42 | 290 | 60-85 | 415-585 | 25 | 30/25 | 40/34 |
WPHY 46 | 46 | 315 | 63-88 | 435-605 | 25 | 30/25 | 40/34 |
WPHY 52 | 52 | 360 | 66-91 | 455-625 | 25 | 30/25 | 40/34 |
WPHY60 | 60 | 415 | 75-100 | 515-690 | 20 | 30/25 | 40/34 |
WPHY 65 | 65 | 450 | 77-102 | 530-705 | 20 | 30/25 | 40/34 |
WPHY 70 | 70 | 485 | 80-105 | 550-725 | 20 | 30/25 | 40/34 |
ASTM A234 Grades | Tensile Strength, min. | Yield Strength, min. | Elongation %, min | |||
ksi | MPa | ksi | MPa | Longitudinal | Transverse | |
WPB | 60 | 415 | 35 | 240 | 22 | 14 |
WPC | 70 | 485 | 40 | 275 | 22 | 14 |
ASTM A420/ A420M | Tensile Strength, min. | Yield Strength, min. | Elongation %, min | |||
Grade | ksi | MPa | ksi | MPa | Longitudinal | Transverse |
WPL6 | 65-95 | 415-655 | 35 | 240 | 22 | 12 |
WPL9 | 63-88 | 435-610 | 46 | 315 | 20 | … |
WPL3 | 65-90 | 450-620 | 35 | 240 | 22 | 14 |
WPL8 | 100-125 | 690-865 | 75 | 515 | 16 | … |
Standard : ASTM A234 / ASME SA234
Grades : A234 GR WP1, WP5, WP9, WP11, WP12, WP22, WP91.
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Type : Seamless / Welded / Fabricated
Range : 1/2″ NB TO 48″ NB
Thickness : Sch 5s, 10s, Sch 40s, Sch 80s,160s, Sch XXS
Manufactured Buttweld Fittings go with quality assurance test under professionals some of the tests are:
Chemical Composition of ASTM A234 Alloy Steel Pipe Fittings(%) | ||||||||
Grade | C | Mn | P | S | Si | Cr | Mo | Others |
WP1 | 0.28 | 0.30-0.90 | 0.045 | 0.045 | 0.10-0.50 | - | 0.44-0.65 | - |
WP12 CL1, WP12 CL2 | 0.05-0.20 | 0.30-0.80 | 0.045 | 0.045 | 0.60 | 0.80-1.25 | 0.44-0.65 | - |
WP11 CL1 | 0.05-0.15 | 0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - |
WP11 CL2, WP11 CL3 | 0.05-0.20 | 0.30-0.80 | 0.040 | 0.040 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - |
WP22 CL1, WP22 CL3 | 0.05-0.15 | 0.30-0.60 | 0.040 | 0.040 | 0.50 | 1.90-2.60 | 0.87-1.13 | - |
WP24 | 0.05-0.10 | 0.30-0.70 | 0.020 | 0.010 | 0.15-0.45 | 2.20-2.60 | 0.90-1.10 | *A |
WP5 CL1, WP5 CL3 | 0.15 | 0.30-0.60 | 0.040 | 0.030 | 0.50 | 4.0-6.0 | 0.44-0.65 | - |
WP9 CL1, WP9 CL3 | 0.15 | 0.30-0.60 | 0.030 | 0.030 | 1.00 | 8.0-10.0 | 0.90-1.10 | - |
WPR | 0.20 | 0.40-1.06 | 0.045 | 0.050 | - | - | - | *B |
WP91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 0.85-1.05 | 0.85-1.05 | *C |
WP911 | 0.09-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.10-0.50 | 0.90-1.10 | 0.90-1.10 | *D |
WP92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.50 | 0.30-0.60 | 0.30-0.60 | * |
Mechanical Properties of ASTM A234 Alloy Steel Pipe Fittings | ||||
Grade | Tensile Strength, min. ksi[MPa] | Yield Strength, min. ksi[MPa] | Elongation, min. % | |
Longitudinal | Transverse | |||
WP1 | 55-80[380-550] | 30[205] | 20 | 13 |
WP12 CL1 | 60[415] | 32[220] | 22 | 14 |
WP12 CL2 | 70[485] | 40[275] | 22 | 14 |
WP11 CL1 | 60[415] | 30[205] | 22 | 14 |
WP11 CL2 | 70[485] | 40[275] | 22 | 14 |
WP11 CL3 | 75[520] | 45[310] | 22 | 14 |
WP22 CL1 | 60[415] | 30[205] | 22 | 14 |
WP22 CL3 | 75[520] | 45[310] | 22 | 14 |
WP24 | 85[585] | 60[415] | 20 | - |
WP5 CL1 | 60[415] | 30[205] | 22 | 14 |
WP5 CL3 | 75[520] | 45[310] | 22 | 14 |
WP9 CL1 | 60[415] | 30[205] | 22 | 14 |
WP9 CL3 | 75[520] | 45[310] | 22 | 14 |
WPR | 63-99[435-605] | 46[315] | 20 | - |
WP91 | 90[620] | 60[415] | 20 | 13 |
WP911 | 90-120[620-840] | 64[440] | 20 | 13 |
WP92 | 90-120[620-840] | 64[440] | 20 | 13 |
