Forged Fittings

  • Home
  • Forged Fittings

Forged Fittings

Fortune Steel & Alloys are the prominent supplier and exporter of excellent quality Forged Fittings that are available in various finish and standards. These forged pipe fittings are designed according to customer’s requirements and are being made up of by using superior quality of steel forgings, as a result they are high in durability and performance. Our wide-ranging exactitude engineered forged fittings is obtainable in different dimensions and sizes, along with in different grades and material specifications. These forged fittings adequately accomplish those industrial needs that demand highly reliable, durable and qualitative products.

We offers the complete range of forged fittings including Socket Weld Fittings, Threaded Fittings, Elbows, Tees, Crosses, Nipple, Plugs, Bosses, Union BS 3799 and more. These forged fittings find application in different industries including refineries, steel, construction sites, etc.

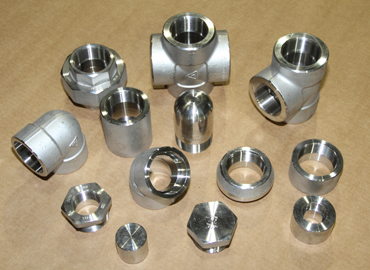

Stainless Steel Forged Fittings
  • Stainless Steel Forged Fittings

Stainless Steel Forged Fittings Specification

Standard : ASTM A182/ ASME SA182
Grades : 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
Dimensions : ANSI B16.11, MSS SP-79, 83, 95, 97, BS 3799
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT / Threaded
Size : 1/2″ NB TO 4″ NB
Pressure : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc

Testings (Destructive, Non Destructive):

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test
Low-Alloy Forged Fittings Materials A182 F5 A182 F9 A182 F11 A182 F22 A182 F91
C 0.15 Max 0.15 Max 0.10-0.20 (2) 0.05-0.15 0.08-0.12
Mn 0.30-0.60 0.30-0.60 0.40-0.65 0.30-0.60 0.30-0.60
P 0.035 Max 0.030 Max 0.025 Max 0.035 Max 0.020 Max
S 0.030 Max 0.030 Max 0.040 Max 0.040 Max 0.010 Max
Si 0.50 Max 0.50-1.00 0.50-0.80 0.50 Max 0.20-0.50
Ni 0.50 Max – – 0.40 Max
Cr 4.0-6.0 8.0-10.0 1.00-1.50 2.00-2.50 8.0-9.5
Mo 0.44-0.65 0.90-1.10 0.44-0.65 0.90-1.10 0.85-1.05
V – – – 0.18-0.25
Cu – – – –
Other – – – Cb, 0.06-0.10; N, 0.03-0.07; Al, 0.04 max.
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

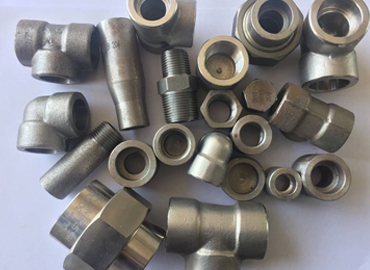

Duplex & Super Duplex Steel Forged Fittings
  • Duplex/Super Duplex Forged Fittings

Duplex & Super Duplex Steel Forged Fittings Specification

Standard : ASTM A182/ ASME SA182
Grades : UNS S32205, UNS S31803, UNS S32750, UNS S32760
Dimensions : ANSI B16.11, MSS SP-79, 83, 95, 97, BS 3799
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT / Threaded
Size : 1/2″ NB TO 4″ NB
Pressure : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc

Manufactured Forged Fittings go with quality assurance test under professionals some of the tests are:

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test
  • X-ray testing (radiographic & radioscopic)
Grade C Mn Si P S Cr Mo Ni N Fe
S31803 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min
S32205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 21.0 – 23.0 2.50 - 3.50 4.50 – 6.50 0.8 – 0.20 63.54 min
S32750 0.030 max 1.20 max 0.80 max 0.035 max 0.020 max 24.00 – 26.00 3.00 – 5.00 6.00 – 8.00 0.24 – 0.32 58.095 min
S32760 0.05 max 1.00 max 1.00 max 0.030 max 0.010 max 24.00 – 26.00 3.00 – 4.00 6.00 – 8.00 0.20 – 0.30 57.61 min
Grade Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
Duplex 2205 7.805 0.285 1420 – 1465 2588 – 2669
Super Duplex 2507 7.8 0.281 1350 2460

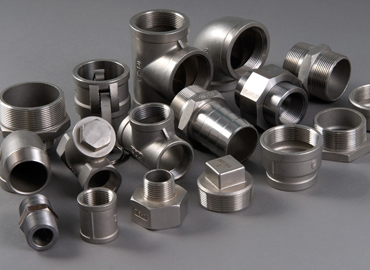

Nickel Alloy Forged Fittings
  • Nickel Alloy Forged Fittings

Nickel Alloy Forged Fittings Specification

Standard : ASTM B564 / ASME SB564
Grades : Nickel 200 / 201, Monel 400 / K500, Inconel 600, Inconel 625, Inconel 718, Incoloy 800, Incoloy 825, Hastelloy C276 / C22, / B2, Alloy 20, Titanium Gr 2/5, Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500)
Dimensions : ANSI B16.11, MSS SP-79, 83, 95, 97, BS 3799
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT / Threaded
Size : 1/2″ NB TO 4″ NB
Pressure : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc

Non-destructive testing includes:

  • Eddy current testing
  • X-ray testing (radiographic & radioscopic)
  • Ultrasonic testing
  • Hydro testing
  • Positive material identifications testing

Destructive testing includes:

  • Tensile tests (including hot tensile testing)
  • Impact tests (up to -196 degrees Celsius)
  • Bend Tests
  • Hardness tests
  • Intercrystalline corrosion test in accordance with ASTM A262 practice E
  • Pitting corrosion test in accordance with ASTM G48A
  • Metallurgical tests (metal analysis, macro & micro examination)
Grade C Mn Si S Cu Fe Ni Cr
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min -
Nickel 201 0.02 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min -
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00
Inconel 601 0.10 max 1.0 max 0.5 max 0.015 max 1.0 max Balance 58.0 – 63.0 21.0 – 25.0
Inconel 625 0.10 max 0.50 max 0.50 max 0.015 max - 5.0 max 58.0 min 20.0 - 23.0
Inconel 718 0.08 max 0.35 max 0.35 max 0.015 max 0.30 max - 50.00 - 55.00 17.00 - 21.00
Incoloy 800 0.10 max 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00
Incoloy 800H 0.05 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00
Incoloy 800HT 0.06 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00
Incoloy 825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50
Monel 400 0.30 max 2.00 max 0.50 max 0.024 max 28.00 – 34.00 2.50 max 63.00 min -
Monel K500 0.25 max 1.5 max 0.5 max 0.010 max 27.00 – 33.00 0.5 – 2 63.00 min -
Hastelloy C276 0.010 max 1.00 max 0.08 max 0.03 max - 4.00 – 7.00 50.99 min* 14.50 – 16.50
Hastelloy C22 0.010 max 0.50 max 0.08 max 0.02 max - 2.00 – 6.00 50.015 min* 20.00 – 22.50
Hastelloy B2 0.02 max 1.0 max 0.1 max 0.03 max - 2.0 max Bal 1.0 max
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 200 / 201 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %
Inconel 601 8.1 g/cm3 1411 °C (2571 °F) Psi – 80,000 , MPa – 550 Psi – 30,000 , MPa – 205 30 %
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %
Inconel 718 8.2 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 482 45 %
Incoloy 800/H/HT 7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %
Incoloy 825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %
Monel 400 8.8 g/cm3 1350 °C (2460 °F) Psi – 80,000 , MPa – 550 Psi – 35,000 , MPa – 240 40 %
Monel K500 8.44 g/cm3 1350 °C (2460 °F) Psi – 160000 , MPa – 1100 Psi – 115000 , MPa – 790 20 %
Hastelloy C276 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %
Hastelloy C22 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %
Hastelloy B2 9.2 g/cm3 1370 °C (2500 ºF ) Psi – 1,10,000 , MPa – 760 Psi – 51000 , MPa – 350 40 %
Carbon Steel Forged Fittings
  • Carbon Steel Forged Fittings

Carbon Steel Forged Fittings Specification

Grade : ASTM A105 Gr 70, ASTM A350 Grade LF1, LF2, LF3 / ASTM A694 Gr F42, F46, F48, F50, F52, F56, F60, F65, F70
Dimensions : ANSI B16.11, MSS SP-79, 83, 95, 97, BS 3799
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT / Threaded
Size : 1/2″ NB TO 4″ NB
Pressure : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc

Manufactured Forged Fittings go with quality assurance test under professionals some of the tests are:

  • Positive Material Identification - PMI Testing
  • Chemical Analysis - Spectro Analysis
  • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
  • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
  • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
  • Intergranular Corrosion (IGC) Test
  • Micro Test
  • Macro Test
  • Hardness Test
  • Pitting Resistance Test
  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
  • Radiography Test
  • Dye Penetrant Test (DP Test)
  • Ultra Sonic Test (UT)
  • Eddy Current Testing
  • Impact Test
  • Bend Test
Element C Mn Si Ph Su Mo Cr Ni
Carbon Steel 0.08 – 0.15 0.30 – 0.60 0.15 – 0.50 0.025 max * 0.025 max * 0.90 – 1.10 2.00 – 2.50 0.5 max
Property Ultimate Tensile Strength * 0.2 % Yield Strength * Elongation * Reduction of Area * Charpy Impact Toughness Hardness (Brinell)
Values 95 min Ksi (655 Mpa) 75 min Ksi (517 Mpa) 17 % min 35 % min 42 mean/ 33 min J at –18o C 197 – 237 BHN (75 Ksi min)
Alloy Steel Forged Fittings
  • Alloy Steel Forged Fittings

Alloy Steel Forged Fittings Specification

Standard : ASTM A182 / ASME SA1824
Grades : A182 Grade F1, F2, F5, F9, F11, F12, F22, F91
Dimensions : ANSI B16.11, MSS SP-79, 83, 95, 97, BS 3799
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT / Threaded
Size : 1/2″ NB TO 4″ NB
Pressure : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc

Manufactured Forged Fittings go with quality assurance test under professionals some of the tests are:

  • Mechanical test/ hardness test/ tensile test
  • Chemical test/ spectral test
  • Positive material test
  • Destructive and no destructive test
  • Micro/ macro test
  • Pitting resistance tests
  • Intergranular corrosion test
  • Flattening/ flaring test
  • Ultrasonic test
  • Visual inspection test
  • Third party inspection report
  • X-ray testing (radiographic & radioscopic)
Chemical Composition of ASTM A182 Low Alloy Steels, %
Grades C Mn P S Si Cr Mo Others
F1
 0.28 0.60-0.90 0.045 0.045 0.15-0.35 - 0.44-0.65 -
F2 0.05-0.21 0.60-0.80 0.040 0.040 0.10-0.60 0.50-0.81 0.44-0.65 -
F5 0.15 0.30-0.60 0.030 0.030 0.50 4.0-6.0 0.44-0.65 *A
F9 0.15 0.30-0.60 0.030 0.030 0.50-1.00 8.0-10.0 0.90-1.10 -
F11 0.05-0.15 0.3-0.6 0.03 0.03 0.5-1 1-1.5 0.044-0.65 *C
F12 0.15 max 0.3-0.6 0.03 0.03 0.5 4-6 0.44-0.65 -
F22 0.05-0.15 0.3-0.6 0.045 0.03 0.5 0.8-1.25 0.44-0.65 -
F91 0.08-0.12 0.30-0.60 0.020 0.010 0.20-0.50 8.0-9.5 0.85-1.05 *D
F92 0.07-0.13 0.30-0.60 0.020 0.010 0.50 8.5-9.5 0.30-0.60 *E
Mechanical Properties of ASTM A182 Low Alloy Steels
Grade Tensile Strength
min. ksi[MPa]		 Yield Strength
min. ksi[MPa]		 Elongation, min. % Reduction of
Area, min. %		 Brinell Hardness
Number, HBW
F1 70[485] 40[275] 20 30 143-192
F2 70[485] 40[275] 20 30 143-192
F5 70[485] 40[275] 20 35 143-217
F5a 90[620] 65[450] 22 50 187-248
F9 85[585] 55[380] 20 40 179-217
F11 90[620] 64[440] 18 40 187-248
F91 90[620] 60[415] 20 40 190-248
F92 90[620] 64[440] 20 45 ≤269
